MORPHOLOGY AND ANATOMY OF A FLOWERING PLANT
The following web page
represents a copy of my notes that formed the basis of lectures given during
the first portion of the Biology of Plants (BOT 1103) lecture course.
Please refer to your own notes, handouts, and to the textbook (Stern,
K., R., J. E. Bidlack, and S. H. Jansky. 2008. Introductory Plant Biology,
McGraw-Hill. 616 pp. - reading
assignments are in the syllabus) for additional information.
This web page does not include information found in various handouts and
related materials (e.g., films, charts, overhead projections, etc.) that
you will receive during the course of the semester. You will be evaluated
over this information as well. If you note any errors in the following
document, I'd appreciate it if you would bring this to my attention.
Email address: mhuss@astate.edu.
ROOTS: Organization and
Anatomy
- Function
- External Anatomy
- Internal Anatomy
- Specialized Roots
- Roots and Plant Nutrition
I. FUNCTION OF ROOTS
- Roots anchor the plant in the
substratum or soil.
- Roots absorb water and dissolved
nutrients or solutes (nitrogen, phosphorous, magnesium, boron, etc.) needed
for normal growth, development, photosynthesis, and reproduction.
- In some plants, roots have become
adapted for specialized functions, which will be discussed at the end of the
section on plant roots.
II. EXTERNAL ANATOMY
- Root cap
- Region of cell division
- Region of elongation
- Region of differentiation or maturation
- Root cap
- thimble-shaped mass of parenchyma
cells at the tip of each root
- protects the root from mechanical
injury
- Dictyosomes or Golgi bodies release
a mucilaginous lubricant (mucigel)
- cells lasts less than a week, then
these die
- possibly important in perception of
gravity (i.e., geotropism or gravitropism)
- amyloplasts (also called statoliths)
appear to accumulate at the bottom of cells; perhaps the plant has a
mechanism for sensing this sedimentation of starch-ladened organelles
and interpreting this as the direction down.
- Region of Cell Division
- Apical meristem - cells divide once
or twice per day.
- The transitional meristems arise
from the tips of roots and shoots. These include:
- the protoderm (which forms the
epidermis)
- the ground meristem (which
forms the ground tissue)
- the procambium (forms the
primary phloem and xylem).
- Region of Elongation
- cells become longer and wider
- Region of Maturation or Differentiation
- root hairs develop as protuberances
from epidermal cells
- increase the surface area for the
absorption of water
- cuticle exists on root but not on
root hairs
- Radicle or
primary root, taproot system, fibrous root system, adventitious roots, prop
roots, and lateral (branch) roots
III. INTERNAL ANATOMY

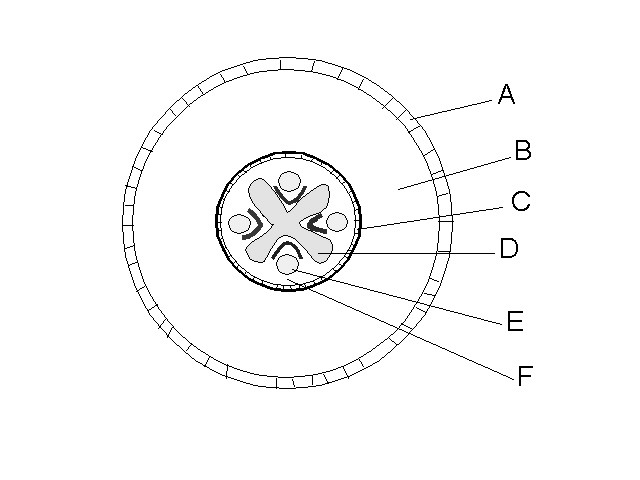

Key for the following
diagram:
- A. epidermis
(outermost layer of cells forming the initial covering on a root).
- B. cortex
(ground tissue that surrounds the vascular cylinder or stele).
- C. endodermis
with Casparian strip (regulates the flow of water and dissolved substances).
- D.
primary xylem (water-conducting tissue found in the vascular cylinder or
stele)
- E.
primary phloem (food-conducting tissue found in the vascular cylinder or
stele)
- The ring of cells beneath the
endodermis would be the pericycle (the origin point for the production of
lateral roots)
- The band of tissue between the phloem
and xylem are remnants of procambium which could lead to the production of
the vascular cambium and secondary growth, especially in a woody dicot root.

IV. SPECIALIZED ROOTS
- Food storage (Carbohydrates)
- manioc or cassava => the source
of starch for making tapioca pudding
- sugar beets => sucrose
- Historical FYI: the original Jack
O'Lanterns were carved out of rutabagas, turnips, and white potatoes.
Americans introduced the practice of using the pumpkin of this purpose.
- Propagative roots adventitious buds on
roots near surface of ground that give rise to aerial stems called suckers
that form a new plants (e.g., fruit trees, such as cherries/pears,
horseradish, Canada thistles, and aspen.
- Pneumatophores - black mangrow
"spongy roots" that facilitate gas exchange between atmosphere and
subsurface roots.
- Aerial Roots
- velamen roots of orchids: a thick
epidermis to prevent water loss.
- prop roots of corn for support
- adventitious roots of ivies, aid in
climbing
- Photosynthetic roots of some orchids
e.g., vanilla orchid - same source of nature vanilla flavoring.
- Contractile roots some herbaceous
dicots and monocots have the ability to contract roods in order to pull the
propagative part of the plant deeper into the soil thereby moving the bulb
out of the freeze zone during the winter months.
- Buttrees roots looks like stem but
really part of the root system; fortifies stem and aids in support.
- Parasitic roots: a haustorium
penetrates the stem of a host plant to secure water and/or food. Examples
include witchweed, dodder (nonphotosynthetic) and mistletoe
(mostly after water, not food).
- Symbiotic roots
- mycorrhizae or "fungus
roots" where a symbiotic relationship forms between a plant and a
fungus. In this partnership the fungus provides protection against some
types of pathogens and increase the surface area for the absorption of
essential nutrients (e.g. phosphorous) from the soil. The plant in
return provides food for the fungus in the form of sugar and amino acids.
- Legumes (e.g., pea, beans, peanuts)
form root nodules. Mutualism between a plant and bacteium which allows
for the fixation of atmospheric nitrogen to form that the plant can
utilized. The bacterium is reward with food and a place to live
V. ROOTS AND
PLANT NUTRITION
- Plants require large amounts of carbon,
hydrogen, and oxygen. Majority arrives to the plant in the form of carbon
dioxide and water.
- Other elements are essential for growth
include the macronutrients and micronutrients.
- Soil is the source of minerals or
nutrients used by plants.
MACRONUTRIENTS: Major essential
elements - large amounts required by the plant for normal growth. Comprises
about 3.5 % of the dry weight of a plant.
- nitrogen (proteins, nucleotides)
- phosphorous (ATP, nucleic acids)
- potassium (movement of materials
across membranes)
- calcium (associated with increasing
sensitivity of tissues to different plant hormones)
- magnesium (chlorophyll, assists
functioning of certain enzymes).
- sulfur (component of cysteine, an
amino acid. sulfide bonding in proteins).
MICRONUTRIENTS: Trace or minor
elements - needed in small amounts. (Comprises about 0.5 % of the dry weight of
a plant).
- iron (electron transport system in
photosynthesis and respiration)
- boron
- manganese
- zinc
- copper (cytochromes in electron
transport systems)
- molybdenum (necessary for normal
functioning of nitrate assimilation)
- chlorine
Type of symptom caused by a nutritional
deficiency is related to the function or role that element plays in health of
plant. For example, Mg is component of chlorophyll, in absence leaves become
chlorotic.EXCESSIVE NUTRIENTS: Excess nutrients
can be toxic to plant.
- For example, sodium/chlorine causes
wilting (salt run off from streets that are treated to remove ice).
- Excessive amounts of boron, copper,
manganese, aluminum are toxic to plants.
- Plant nutrition is linked to the
chemical and physical attributes of the soil the plant is growing in.
Components of soil.
- Soil Particles - SAND, SILT, and CLAY -
mix some soil in a jar with water, and allow it to settle out overnight. The
sand will be on the bottom, the silt will be next, and the clay will be on
top. Clay is the final product of weathering and is composed of the smallest
particles. Loams contain approximately equal amounts of sand, silt, and
clay. Cation exchange from the surface of negatively-charged clay particles
to the plant is facilitate by trading a cation for a hydrogen ion. Anions do
not attach to clay and are frequently leached from the soil before the plant
can obtain them (sulfates and nitrates).
- Humus is the decomposing organic matter
in soil. Amount varies along a continuum MINERAL SOILS (1-10% humus) To
ORGANIC SOILS (about 30 % humus).
- Air -About 25-50% of the volume of soil
is air. The amount of air is higher in sandy soils than in clay soils.
- Water - Soil contains chemically bound
(locked to minerals and clay particles - unavailable to plants) and unbound
water (available to plants).
STEMS: Organization and
Anatomy
- Function
- External Anatomy
- Internal Anatomy
- Specialized Stems
I. FUNCTION OF STEMS
- Stems support leaves and branches.
- Stems transport water and solutes
between roots and leaves.
- Stems in some plants are photosynthetic
(e.g., cacti - leaves are reduced to spines to protect against herbivory and
reduce water loss).
- Stems may store necessary materials for
life (e.g., water [cactus, miscellaneous succulents]; starch, sugar
[sugarcane]).
- In some plants, stems have become
adapted for specialized functions, which will be discussed at the end of the
section on plant stems.
II. EXTERNAL ANATOMY
REFER TO FOLLOWING
DIAGRAM OF A WOODY DICOT STEM:
FYI: Apical dominance
refers to the suppression of growth by hormones produced in the apical meristem.
The Christmas tree pattern of pines indicates strong apical dominance.
Bushy plants have weak apical dominance. If apical meristem is eaten or
destroyed, plants may become bushy.
III. INTERNAL ANATOMY IN
FLOWERING PLANTS
Dicotyledon (two seed leaves) and
Monocotyledon (one seed leaf) flowering plants.
Monocots (examples include, grasses,
lilies, onions, irises, bamboo, corn, rice, etc.)
- no vascular or cork cambium (secondary
growth is rare)
- vascular tissue in bundles (primary
phloem, primary xylem, procambium, and sclerenchyma fibers) and distributed
randomly through the ground tissue
- ground tissue not divided into pith and
cortex
- intercalary meristems at base of nodes
allow for elongation of stem (e.g., grass, bamboo) among some monocots
Herbaceous dicots (examples
include, alfalfa, tobacco, sunflower, tomato, etc.).
- some secondary growth may or may not
develop
- vascular tissue in bundles (primary
phloem, primary xylem, procambium, and sclerenchyma fibers) but arranged in
a circular pattern when stem is observed in cross section
- ground tissue is divided into pith and
cortex
Woody dicots (examples include, oaks,
hickory, apple, elm, etc.)
- woody dicot stems start out like that
in herbaceous dicots, but these develop secondary growth
- lateral meristems allow the stem to
increase in girth or diameter
- lateral meristems: vascular cambium and
cork cambium (phellogen)
- Further discussion of secondary growth
appears in a later section on secondary growth.
IV. SPECIALIZED STEMS
- Rhizomes - horizontal stems that grow
below the ground with adventitious roots; examples are irises, grasses.
- Stolons or runners - horizontal stem
that grows above the ground with long internodes; examples are strawberry,
airplane plants.
- Tubers - accumulation of food at the
tips of underground stolons, after the tuber matures the stolon dies, the
"eyes" of a potato are the nodes of a starch-ladened stem.
- Rosette - stem with short internodes
and leaves attached at nodes
- Bulbs - large buds with a small stem at
the lower end surrounded by numerous fleshy leaves, adventitious roots at
base; examples include onion, tulip, lily.
- Corms - resemble bulbs but composed
entirely of stem tissue surrounded by a few papery scale like leaves, food
storage organs with adventitious roots at the base of corms; examples
include crocus and gladiolus.
- Cladophylls - leaf-like stems; examples
include butcher's broom, asparagus.
- Cacti - stout fleshy stems that are
modified for food and water storage and photosynthesis.
- Thorns - honey locust (modified stem),
black locust and some species of Euphorbia ( spines are stipules), roses (thorn or
prickles arise from epidermis).
- Tendrils - for climbing; for example,
grape and Boston ivy (English ivy - adventitious roots not stem).
SECONDARY GROWTH IN STEMS
AND ROOTSIn woody plants,
most of which are dicots, secondary growth may occur in the roots or the stems.
As the plant develops functional lateral meristems, that is, the vascular
cambium and cork cambium (the phellogen), the diameter of roots and stems
increases as new tissues are produced. This increase in girth causes irreparable
damage especially to the epidermis, phloem, and associated tissues.
Please refer to the flow charts of primary
and secondary growth in stems and roots that were handed out in lab.
Vascular cambium produces secondary phloem and xylem. The study of woody plant growth over time by examining the annual rings
created by secondary xylem is known as
Dendrochronology.
Keep in mind that the periderm arises from the growth and
production of
cork (dead and suberized at maturity) and parenchyma (lenticels - allows for gas
exchange) from the cork cambium . The periderm replaces the outer
covering of the plant as it increases in girth. The bark includes the
periderm and any other tissue (living or dead) from the outermost part of the
tree to the cylinder of the vascular cambium in the stem and the root.
LEAVES: Organization and Anatomy
- Function
- External Anatomy
- Internal Anatomy
- Specialized Leaves
I. FUNCTION OF LEAVES
- Leaves are the solar energy and CO2
collectors of plants.
- In some plants, leaves have become
adapted for specialized functions, which will be discussed at the end of the
section on plant leaves.
II. EXTERNAL ANATOMY
- Leaves possess a blade or lamina, an
edge called the margin of the leaf, the veins (vascular bundles), a petiole,
and two appendages at the base of the petiole called the stipules.
- Arrangement of leaves on a stem =
phyllotaxy.
- whorled - three or more leaves at a
node.
- opposite - two leaves attached at
the same node.
- spiral or alternate - one leaf per
node.
- Leaf types (Simple, compound, peltate
and perfoliate).
- Simple leaf = undivided blade with
a single axillary bud at the base of its petiole.
- Compound leaf = blade divided into
leaflets, leaflets lack an axillary bud but each compound leaf has a
single bud at the base of its petiole.
- pinnately-compound leaves:
leaflets in pairs and attached along a central rachis; examples
include ash, walnut, pecan, and rose.
- palmately-compound leaves:
leaflets attached at the same point at the end of the petiole;
examples of plants with this leaf type include buckeye, horse
chestnut, hemp or marijuana, and shamrock.
- Peltate leaves = petioles that are
attached to the middle of the blade; examples include mayapple.
- Perfoliate leaves = sessile leaves
that surround and are pierced by stems; examples include yellow-wort and
thoroughwort.
- Venation = arrangement of veins in a
leaf.
- Netted-venation = one or a few
prominent midveins from which smaller minor veins branch into a meshed
network; common to dicots and some nonflowering plants.
- Pinnately-veined leaves = main
vein called midrib with secondary veins branching from it (e.g.,
elm).
- Palmately-veined leaves = veins
radiate out of base of blade (e.g., oak, maple).
- Parallel venation = characteristics
of many monocots (e.g., grasses, cereal grains); veins are parallel to
one another.
- Dichotomous venation = no midrib or
large veins; rather individual veins have a tendency to fork evenly from
the base of the the blade to the opposite margin, creating a fan-shaped
leaf (e.g., Gingko).
III. INTERNAL ANATOMY
- Epidermis = single layer of epidermal
cells (containing no chloroplasts) that interlock with one another on the
upper (adaxial - toward the leaf axis) and lower (abaxial - away from the
leaf axis) side of the leaf blade; the outer surface is often coated with a
waxy substance called cutin to form the cuticle (to prevent excessive water
loss) and the hair-like structures called trichomes.
- In the epidermis are pores called
stomata (pl.), stoma (singular), which allow for gas exchange. Stomata
are formed by two guard cells, which regulate the opening and closing of
such pores. In dicots, guard cells tend to be sausage-shaped, whereas in
monocots, these tend to be shaped like a bone or a fattened capital letter
I. Guard cells possess chloroplasts. When water is pumped into the
guard cells, these tend to bend away from one another creating the opening;
when water is pumped out of these cells, the cells become more cylindrical
in shape and the stomata close.
- Beneath the upper layer of epidermis,
are a rows of vertically-positioned chlorenchyma cells that form the
palisade mesophyll. Just below this layer exists bag-like chlorenchyma cells
that are loosely packed together which form the spongy mesophyll. The
chloroplasts in these two layers of mesophyll are responsible for
photosynthesis. Beneath the lower most portion of the mesophyll is the lower
epidermis.
- Veins = vascular bundles xylem
(water-conducting tissue) oriented towards the upper side of the leaf,
containing phloem (food-conducting tissue) oriented towards the lower side
of the leaf, sclerenchyma fibers, and parenchyma tissue (which may form a
bundle sheath surrounding the vein).
- Collenchyma may be present in the
midrib of the leaf or in the petiole just below the epidermis. Collenchyma
serves as strengthening tissue to assist leaves in supporting their own
weight and to prevent damage due to motion caused by the wind.
- Many plants are deciduous (able to
loose their leaves during cold or dry seasons).
IV. SPECIALIZED LEAVES
-

MOVEMENTS OF FLUIDS
IN PLANTS
- Transpiration and
movement of water within the plant body
- Gutation
- Movement of food
within the plant body
I. Transpiration
- evaporation of water from shoot.
Movement of water and minerals in the
xylem is a major process. For example, corn plants transpires almost 500 liters
of water during its 4 month growing period.
Water moves in tracheids and vessel
members. Tracheids pass water laterally through simple and bordered pits. Vessel
elements have an greater diameter and are stacked end to end, so water can flow
for longer distances (a centimeter to a meter) before having to transverse a
pit.
II. Gutation
results from root pressure (solutes moving into xylem cause water to also move
into the xylem from surrounding root cells) when transpiration is negligible.
Wet soils at night.
Factors Affecting Transpiration
Wind, Internal concentration of carbon
dioxide (low concentrations in leaf cause the stomata to open), wind, air
temperature, soil, and light intensity. (Light tends to cause stomata to open in
the morning and close in the afternoon).
III. Movement
of food within the plant body - transporting organic solutes
Transport occurs in the sieve-tube members
of phloem. Very delicate and easily damaged. This fact has limited a lot of work
done on phloem, since it releases callose (glucose polymer) and P-protein (proteinaceous
slime) which clog up the sieve-tube plates (perforated).
Process is initiated by active
transport of sugars from the leaf cells to sieve-tube. SOURCE (leaves in summer
and fall, roots in the early spring) AND SINKS (buds in the spring; fruits,
seeds, and roots in the summer and fall) AND THE BULK MOVEMENT OF WATER AND
SOLUTES.
VISIT http://botit.botany.wisc.edu/images/130/
FOR IMAGES OF PLANT CELLS AND TISSUES: CLICK ONTO LINKS LISTED AS EARLY
DEVELOPMENT, PLANT MORPHOLOGY, ROOT, STEM, LEAF, AND WOOD.
This web page was assembled by Dr. Martin J. Huss -
Last modified on Sept. 17, 2007
| |
|
